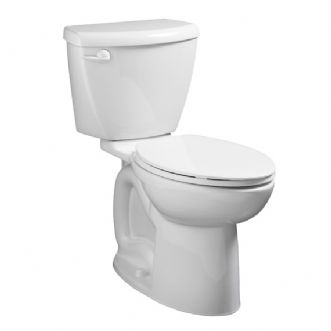

Diplomat Spacesaver Complete Toilet

• DISCONTINUED DECEMBER 2010


• Vitreous china

• Low-consumption (6.0 Lpf/1.6 gpf)

• Space saving compact design - Elongated bowl fits in the same space as a round front toilet

• 12" (305mm) Rough-in

• Elongated siphon action jetted bowl with 2-1/8" trapway

• Internal trapway area fully glazed

• Generous 8" x 9" water surface area

• Oversized 3" Flush Valve with Chemical Resistant Flapper

• Speed Connect® tank to bowl coupling system

• Sanitary dam on bowl with four point tank stabilization

• 2 color match bolt caps

• Color-matched Trip Lever

• Color matched solid plastic seat with cover

• Wax ring gasket with closet bolts

• 100% factory flush tested

• 5 year total toilet warranty

  Nominal Dimensions:
  718 x 438 x 733mm
  (28-1/4" x 17-1/4" x 28-7/8")

Fixtures & Components

Main Fixtures

• 091-3925 - Diplomat Spacesaver Complete Toilet
  Estimated List Price: $359
  Width - 17.25
  Height - 28.875
  Length - 28.25

Downloads

• Spec Sheet
• Installation Instructions
• Repair Parts Diagram
•
  Product Support:
• Warranty Card
