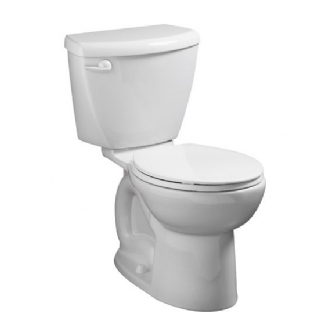

Diplomat Round Front Toilet w/ Insulated Tank

• Vitreous china

• Low-consumption (6.0 Lpf/1.6 gpf)

• 12" Rough-in (305mm)

• Space saving round front siphon action jetted bowl

• Fully-glazed 2-1/8" trapway with 2" ball pass

• Generous 9" x 8" water surface area

• Oversized 3" flush valve with chemical resistant flapper

• Insulated liner in tank to resist condensation on outside surface

• Color-matched trip lever

• Speed Connect® tank-to-bowl coupling system

• Sanitary dam on bowl with four point tank stabilization

• 2 color-matched bolt caps

• Color matched solid plastic seat and cover

• Wax ring gasket with closet bolts

• 100% factory flush tested

• 5 year total toilet warranty

  Nominal Dimensions:
  718 x 438 x 733mm
  (28-1/4" x 17-1/4" x 28-7/8")

Fixtures & Components

Main Fixtures

• 091-0161 - Diplomat Round Front Toilet w/ Insulated Tank
  See your local Menards store for current pricing

  • Complete toilet

Downloads

• Spec Sheet
• Installation Instructions
• Repair Parts Diagram
•
  Product Support:
• Warranty Card
